Kubernetes Releases

Não precisamos disso para o exame, mas vale a pena entender para compreender o projeto do Kubernetes como um todo.

Kubernetes esta em constante evolução. O que sabemos até agora sobre as versões de api do Kubernetes?

  • Quando instalamos o Kubernetes, instalamos uma versão específica do Kubernetes.
# Nesse caso temos a versão 1.27.4
kubectl get nodes
NAME                       STATUS   ROLES                  AGE    VERSION
k3d-k3s-default-server-0   Ready    control-plane,master   2d8h   v1.27.4+k3s1
k3d-k3s-default-agent-1    Ready    <none>                 2d8h   v1.27.4+k3s1
k3d-k3s-default-agent-0    Ready    <none>                 2d8h   v1.27.4+k3s1

A versão do Kubernetes é controlada através de versionamento semântico.

Alt text

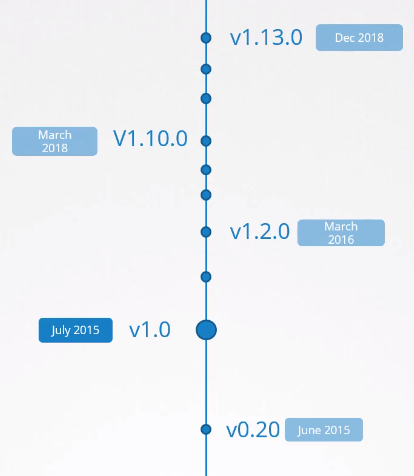

A primeira versão major foi a v1.0 em julho de 2015 mas a primeira versão estável foi a v1.13.0

Alt text

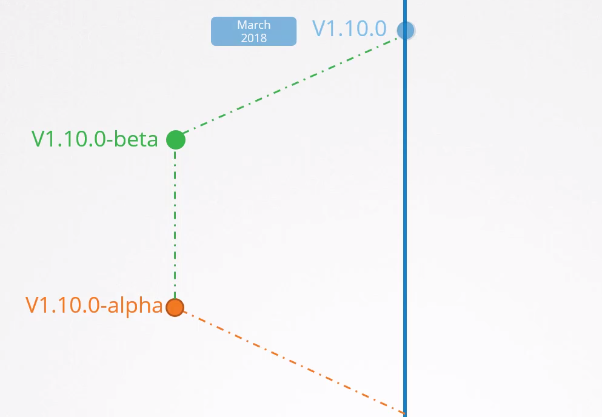

Eles costumam lançar a versão alpha com as novas features desativadas e depois a versão beta com as feature ativada e criam a release.

Alt text

Podemos encontrar as releases em [https://github.com/kubernetes/kubernetes/releases]

Quando baixamos uma dessas releases, o que temos?

wget https://github.com/kubernetes/kubernetes/archive/refs/tags/v1.28.5.zip
unzip v1.28.5.zip

ls -lha kubernetes-1.28.5/cmd
total 108K
drwxr-xr-x 26 david david 4.0K Dec 19 10:32 .
drwxr-xr-x 18 david david 4.0K Dec 19 10:32 ..
-rw-r--r--  1 david david  365 Dec 19 10:32 OWNERS
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 clicheck
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 cloud-controller-manager
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 dependencycheck
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 dependencyverifier
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 fieldnamedocscheck
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 gendocs
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 genkubedocs
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 genman
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 genswaggertypedocs
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 genutils
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 genyaml
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 importverifier
drwxr-xr-x  3 david david 4.0K Dec 19 10:32 kube-apiserver #<<<
drwxr-xr-x  4 david david 4.0K Dec 19 10:32 kube-controller-manager #<<<
drwxr-xr-x  3 david david 4.0K Dec 19 10:32 kube-proxy #<<<
drwxr-xr-x  3 david david 4.0K Dec 19 10:32 kube-scheduler #<<<
drwxr-xr-x  4 david david 4.0K Dec 19 10:32 kubeadm
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 kubectl
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 kubectl-convert
drwxr-xr-x  3 david david 4.0K Dec 19 10:32 kubelet #<<<
drwxr-xr-x  3 david david 4.0K Dec 19 10:32 kubemark
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 preferredimports
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 prune-junit-xml
drwxr-xr-x  2 david david 4.0K Dec 19 10:32 yamlfmt

Temos todos os códigos que precisamos mas vamos prestar atenção nisso.

O Kubernetes é um projeto que engloba outros projetos. Lembra que o cAdvisor esta presentar no Kubelet? Lembra que o ETCD é usado?

Veja que precisamos do CNI, CoreDNS, ETCD, cAdvisor, etc

O kube-apiserver, controller-manager, kube-scheduler, kubelet, kube-proxy kubectl estão NA MESMA VERSÃO pois são projetos do Kubernetes, mas outros componentes estão em versões diferentes.

Outros projetos possuem seus próprios repositórios com suas versões específicas.

cat  kubernetes-1.28.5/build/dependencies.yaml
dependencies:
  # zeitgeist (https://github.com/kubernetes-sigs/zeitgeist) was inspired by
  # (and now replaces) the cmd/verifydependencies tool to verify external
  # dependencies across the repo.
  #
  # The zeitgeist dependencies.yaml file format is intended to be
  # backwards-compatible with the original tooling.
  #
  # In instances where the file format may change across versions, this meta
  # dependency check exists to ensure we're pinned to a known good version.
  #
  # ref: https://github.com/kubernetes/kubernetes/pull/98845
  - name: "zeitgeist"
    version: "v0.2.0"
    refPaths:
    - path: hack/verify-external-dependencies-version.sh
      match: sigs.k8s.io/zeitgeist@v.*

  # CNI plugins
  - name: "cni"
    version: 1.2.0
    refPaths:
    - path: cluster/gce/config-common.sh
      match: WINDOWS_CNI_VERSION=
    - path: cluster/gce/gci/configure.sh
      match: DEFAULT_CNI_VERSION=
    - path: test/e2e_node/remote/utils.go
      match: cniVersion[\t\n\f\r ]*=

  # CoreDNS
  - name: "coredns-kube-up"
    version: 1.10.1
    refPaths:
    - path: cluster/addons/dns/coredns/coredns.yaml.base
      match: registry.k8s.io/coredns
    - path: cluster/addons/dns/coredns/coredns.yaml.in
      match: registry.k8s.io/coredns
    - path: cluster/addons/dns/coredns/coredns.yaml.sed
      match: registry.k8s.io/coredns

  - name: "coredns-kubeadm"
    version: 1.10.1
    refPaths:
    - path: cmd/kubeadm/app/constants/constants.go
      match: CoreDNSVersion =

  # CRI Tools
  - name: "crictl"
    version: 1.27.0
    refPaths:
    - path: cluster/gce/windows/k8s-node-setup.psm1
      match: CRICTL_VERSION =
    - path: cluster/gce/gci/configure.sh
      match: DEFAULT_CRICTL_VERSION=

  # protoc
  - name: "protoc"
    version: 23.4
    refPaths:
    - path: hack/lib/protoc.sh
      match: PROTOC_VERSION=

  # etcd
  - name: "etcd"
    version: 3.5.9
    refPaths:
    - path: cluster/gce/manifests/etcd.manifest
      match: etcd_docker_tag|etcd_version
    - path: cluster/gce/upgrade-aliases.sh
      match: ETCD_IMAGE|ETCD_VERSION
    - path: cmd/kubeadm/app/constants/constants.go
      match: DefaultEtcdVersion =
    - path: hack/lib/etcd.sh
      match: ETCD_VERSION=
    - path: staging/src/k8s.io/sample-apiserver/artifacts/example/deployment.yaml
      match: gcr.io/etcd-development/etcd
    - path: test/e2e/framework/providers/gcp.go
      match: const etcdImage
    - path: test/utils/image/manifest.go
      match: configs\[Etcd\] = Config{list\.GcEtcdRegistry, "etcd", "\d+\.\d+.\d+(-(alpha|beta|rc).\d+)?(-\d+)?"}

  - name: "etcd-image"
    version: 3.5.9
    refPaths:
    - path: cluster/images/etcd/Makefile
      match: BUNDLED_ETCD_VERSIONS\?|LATEST_ETCD_VERSION\?
    - path: cluster/images/etcd/migrate/options.go

  - name: "node-problem-detector"
    version: 0.8.13
    refPaths:
    - path: test/e2e_node/image_list.go
      match: const defaultImage
    - path: test/kubemark/resources/hollow-node_template.yaml
      match: registry.k8s.io/node-problem-detector/node-problem-detector
    - path: cluster/addons/node-problem-detector/npd.yaml
      match: registry.k8s.io/node-problem-detector/node-problem-detector
    # TODO(dims): Ensure newer versions get uploaded to
    # - https://console.cloud.google.com/storage/browser/gke-release/winnode/node-problem-detector
    # - https://gcsweb.k8s.io/gcs/kubernetes-release/node-problem-detector/
    # and then the following references get fixed.
    #
    # - path: cluster/gce/gci/configure.sh
    #  match: DEFAULT_NPD_VERSION=
    #- path: cluster/gce/windows/k8s-node-setup.psm1
    #  match: DEFAULT_NPD_VERSION

  # From https://github.com/etcd-io/etcd/blob/main/Makefile
  - name: "golang: etcd release version"
    version: 1.19.9 # https://github.com/etcd-io/etcd/blob/main/CHANGELOG/CHANGELOG-3.5.md
    refPaths:
    - path: cluster/images/etcd/Makefile
      match: 'GOLANG_VERSION := \d+.\d+(alpha|beta|rc)?\.?(\d+)?'

  # Golang
  - name: "golang: upstream version"
    version: 1.20.12
    refPaths:
    - path: .go-version
    - path: build/build-image/cross/VERSION
    - path: staging/publishing/rules.yaml
      match: 'default-go-version\: \d+.\d+(alpha|beta|rc)?\.?(\d+)?'
    - path: test/images/Makefile
      match: GOLANG_VERSION=\d+.\d+(alpha|beta|rc)?\.?\d+

  # Golang pre-releases are denoted as `1.y<pre-release stage>`
  # Example: go1.16rc1
  #
  # This entry is a stub of the major version to allow dependency checks to
  # pass when building Kubernetes using a pre-release of Golang.
  - name: "golang: 1.<major>"
    version: 1.20
    refPaths:
    - path: build/build-image/cross/VERSION
    - path: hack/lib/golang.sh
      match: minimum_go_version=go([0-9]+\.[0-9]+)

  - name: "registry.k8s.io/kube-cross: dependents"
    version: v1.28.0-go1.20.12-bullseye.0
    refPaths:
    - path: build/build-image/cross/VERSION

  # Base images
  - name: "registry.k8s.io/debian-base: dependents"
    version: bookworm-v1.0.0
    refPaths:
    - path: cluster/images/etcd/Makefile
      match: BASEIMAGE\?\=registry\.k8s\.io\/build-image\/debian-base:[a-zA-Z]+\-v((([0-9]+)\.([0-9]+)\.([0-9]+)(?:-([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)(?:\+([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)
    - path: cluster/images/etcd/Makefile
      match: BASEIMAGE\?\=registry\.k8s\.io\/build-image\/debian-base-arm:[a-zA-Z]+\-v((([0-9]+)\.([0-9]+)\.([0-9]+)(?:-([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)(?:\+([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)
    - path: cluster/images/etcd/Makefile
      match: BASEIMAGE\?\=registry\.k8s\.io\/build-image\/debian-base-arm64:[a-zA-Z]+\-v((([0-9]+)\.([0-9]+)\.([0-9]+)(?:-([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)(?:\+([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)
    - path: cluster/images/etcd/Makefile
      match: BASEIMAGE\?\=registry\.k8s\.io\/build-image\/debian-base-ppc64le:[a-zA-Z]+\-v((([0-9]+)\.([0-9]+)\.([0-9]+)(?:-([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)(?:\+([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)
    - path: cluster/images/etcd/Makefile
      match: BASEIMAGE\?\=registry\.k8s\.io\/build-image\/debian-base-s390x:[a-zA-Z]+\-v((([0-9]+)\.([0-9]+)\.([0-9]+)(?:-([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)(?:\+([0-9a-zA-Z-]+(?:\.[0-9a-zA-Z-]+)*))?)
    - path: test/conformance/image/Makefile
      match: BASE_IMAGE_VERSION\?=

  - name: "registry.k8s.io/distroless-iptables: dependents"
    version: v0.2.8
    refPaths:
    - path: build/common.sh
      match: __default_distroless_iptables_version=
    - path: test/utils/image/manifest.go
      match: configs\[DistrolessIptables\] = Config{list\.BuildImageRegistry, "distroless-iptables", "v([0-9]+)\.([0-9]+)\.([0-9]+)"}

  - name: "registry.k8s.io/go-runner: dependents"
    version: v2.3.1-go1.20.12-bullseye.0
    refPaths:
    - path: build/common.sh
      match: __default_go_runner_version=

  - name: "registry.k8s.io/pause"
    version: 3.9
    refPaths:
    - path: build/pause/Makefile
      match: TAG\s*\?=

  - name: "registry.k8s.io/pause: dependents"
    version: 3.9
    refPaths:
    - path: cluster/gce/config-common.sh
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: cluster/gce/gci/configure-helper.sh
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: cluster/gce/windows/smoke-test.sh
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: cmd/kubeadm/app/constants/constants.go
      match: PauseVersion\s+=
    - path: cmd/kubeadm/app/util/template_test.go
      match: validTmpl\s+=
    - path: cmd/kubeadm/app/util/template_test.go
      match: validTmplOut\s+=
    - path: cmd/kubeadm/app/util/template_test.go
      match: doNothing\s+=
    - path: cmd/kubelet/app/options/container_runtime.go
      match: defaultPodSandboxImageVersion\s+=
    - path: hack/testdata/pod-with-precision.json
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: staging/src/k8s.io/kubectl/testdata/set/multi-resource-yaml.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: staging/src/k8s.io/kubectl/testdata/set/namespaced-resource.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/cmd/core.sh
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/fixtures/pkg/kubectl/cmd/set/multi-resource-yaml.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/fixtures/pkg/kubectl/cmd/set/namespaced-resource.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/benchmark-controller.json
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-default.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-node-affinity.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-pod-affinity.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-pod-anti-affinity.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-preferred-pod-affinity.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-preferred-pod-anti-affinity.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-preferred-topology-spreading.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-secret-volume.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/integration/scheduler_perf/config/pod-with-topology-spreading.yaml
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/utils/runners.go
      match: registry.k8s.io\/pause:\d+\.\d+
    - path: test/utils/image/manifest.go
      match: configs\[Pause\] = Config{list\.GcRegistry, "pause", "\d+\.\d+(.\d+)?"}

  - name: "registry.k8s.io/build-image/setcap: dependents"
    version: bookworm-v1.0.0
    refPaths:
    - path: build/common.sh
      match: __default_setcap_version=

  # cadvisor
  - name: "gcr.io/cadvisor/cadvisor: dependents"
    version: "v0.47.2"
    refPaths:
    - path: test/e2e_node/resource_collector.go
      match: gcr.io\/cadvisor\/cadvisor:v\d+\.\d+\.\d+
    - path: test/e2e_node/image_list.go
      mathc: gcr.io\/cadvisor\/cadvisor:v\d+\.\d+\.\d+

  # GCB docker gcloud image
  - name: "gcb-docker-gcloud: dependents"
    version: v20221007-69e0da97ef
    refPaths:
    - path: build/pause/cloudbuild.yaml
      match: gcr.io/k8s-staging-test-infra/gcb-docker-gcloud
    - path: cluster/images/etcd/cloudbuild.yaml
      match: gcr.io/k8s-staging-test-infra/gcb-docker-gcloud
    - path: test/images/cloudbuild.yaml
      match: gcr.io/k8s-staging-test-infra/gcb-docker-gcloud

As versões do Kubernetes depreciam algumas coisas e criam outras. Precisamos ficar atento quanto a isso pois podem precisar de ajustes nos manifestos.
