Ingress
Vamos falar sobre o Nginx Ingress, mas existem vários ingress diferentes. Vamos fazer um setup do Nginx e assegurar que ele use TLS.
Leitura de review:

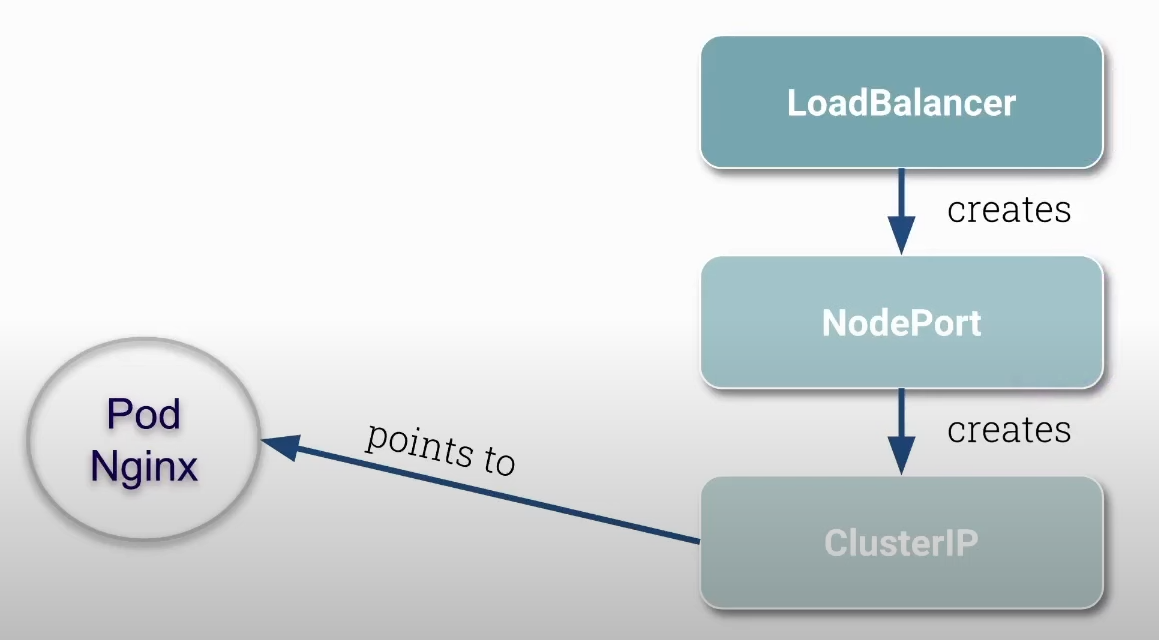

O nodeport abre a mesma porta em todos os nodes do cluster e redireciona essa porta para um cluster IP específico. Tanto faz qual o ip iremos de node iremos usar, o que irá diferenciar é a porta. Mas nesse caso poderíamos usar sempre o mesmo ip do node e é ai que o load balancer entra, para ter um conjunto de IPs de node para que possa ser balanceado as requisições com um único endereço IP e domínio.
Antes de iniciar delete todas as network policies criadas anteriormente.
root@cks-master:~# kubectl get networkpolicies
NAME POD-SELECTOR AGE
backend run=backend 21h
default-deny <none> 21h
frontend run=frontend 21h
root@cks-master:~# kubectl delete networkpolicies backend default-deny frontend
networkpolicy.networking.k8s.io "backend" deleted
networkpolicy.networking.k8s.io "default-deny" deleted
networkpolicy.networking.k8s.io "frontend" deleted
Vamos instalar o Nginx Ingress.
root@cks-master:~# kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.11.2/deploy/static/provider/cloud/deploy.yaml
namespace/ingress-nginx created #<<< Namespace criado
serviceaccount/ingress-nginx created
serviceaccount/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
configmap/ingress-nginx-controller created # Config
service/ingress-nginx-controller created
service/ingress-nginx-controller-admission created
deployment.apps/ingress-nginx-controller created # Deployment
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created
ingressclass.networking.k8s.io/nginx created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
# Se observamos bem, temos aqui um service do tipo LoadBalancer que esta em pending
# Isso acontece por que não temo um IP externo ainda, mas já temos os nodepods 32383 e 32617
root@cks-master:~# k -n ingress-nginx get svc,pod
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller LoadBalancer 10.101.64.57 <pending> 80:32383/TCP,443:32617/TCP 88s
service/ingress-nginx-controller-admission ClusterIP 10.102.213.88 <none> 443/TCP 88s
NAME READY STATUS RESTARTS AGE
pod/ingress-nginx-admission-create-tmn2q 0/1 Completed 0 88s
pod/ingress-nginx-admission-patch-5dv4z 0/1 Completed 0 88s
pod/ingress-nginx-controller-7d4db76476-np7x6 1/1 Running 0 88s # Pod rodando o nginx
## Podemos observar no deployment que temos algumas configurações de argumentos que passamos para o nginx
root@cks-master:~# k describe deployments.apps -n ingress-nginx ingress-nginx-controller
Name: ingress-nginx-controller
Namespace: ingress-nginx
CreationTimestamp: Sun, 18 Aug 2024 14:55:41 +0000
Labels: app.kubernetes.io/component=controller
app.kubernetes.io/instance=ingress-nginx
app.kubernetes.io/name=ingress-nginx
app.kubernetes.io/part-of=ingress-nginx
app.kubernetes.io/version=1.11.2
Annotations: deployment.kubernetes.io/revision: 1
Selector: app.kubernetes.io/component=controller,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/name=ingress-nginx
Replicas: 1 desired | 1 updated | 1 total | 1 available | 0 unavailable
StrategyType: RollingUpdate
MinReadySeconds: 0
RollingUpdateStrategy: 1 max unavailable, 25% max surge
Pod Template:
Labels: app.kubernetes.io/component=controller
app.kubernetes.io/instance=ingress-nginx
app.kubernetes.io/name=ingress-nginx
app.kubernetes.io/part-of=ingress-nginx
app.kubernetes.io/version=1.11.2
Service Account: ingress-nginx
Containers:
controller:
Image: registry.k8s.io/ingress-nginx/controller:v1.11.2@sha256:d5f8217feeac4887cb1ed21f27c2674e58be06bd8f5184cacea2a69abaf78dce
Ports: 80/TCP, 443/TCP, 8443/TCP
Host Ports: 0/TCP, 0/TCP, 0/TCP
SeccompProfile: RuntimeDefault
Args:
######### Bloco de configs ###############
/nginx-ingress-controller
--publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
--election-id=ingress-nginx-leader
--controller-class=k8s.io/ingress-nginx
--ingress-class=nginx
--configmap=$(POD_NAMESPACE)/ingress-nginx-controller
--validating-webhook=:8443
--validating-webhook-certificate=/usr/local/certificates/cert
--validating-webhook-key=/usr/local/certificates/key
--enable-metrics=false
#########################################
Requests:
cpu: 100m
memory: 90Mi
Liveness: http-get http://:10254/healthz delay=10s timeout=1s period=10s #success=1 #failure=5
Readiness: http-get http://:10254/healthz delay=10s timeout=1s period=10s #success=1 #failure=3
Environment:
POD_NAME: (v1:metadata.name)
POD_NAMESPACE: (v1:metadata.namespace)
LD_PRELOAD: /usr/local/lib/libmimalloc.so
Mounts:
/usr/local/certificates/ from webhook-cert (ro)
Volumes:
webhook-cert:
Type: Secret (a volume populated by a Secret)
SecretName: ingress-nginx-admission
Optional: false
Node-Selectors: kubernetes.io/os=linux
Tolerations: <none>
Conditions:
Type Status Reason
---- ------ ------
Available True MinimumReplicasAvailable
Progressing True NewReplicaSetAvailable
OldReplicaSets: <none>
NewReplicaSet: ingress-nginx-controller-7d4db76476 (1/1 replicas created)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal ScalingReplicaSet 2m50s deployment-controller Scaled up replica set ingress-nginx-controller-7d4db76476 to 1
Pegue o IP Público de qualquer uma das suas máquinas no gcloud e vamos conferir nas portas específicas que temos.
Chegamos no nginx, mas ele não sabe o que fazer, não tem para quem apontar.
Vamos criar dois pods e definir as regras
oot@cks-master:~# kubectl run app1 --image=nginx
pod/app1 created
root@cks-master:~# kubectl run app2 --image=nginx
pod/app2 created
root@cks-master:~# kubectl expose pod/app1 --port 80
service/app1 exposed
root@cks-master:~# kubectl expose pod/app2 --port 80
service/app2 exposed
root@cks-master:~# k get pod
NAME READY STATUS RESTARTS AGE
app1 1/1 Running 0 6m41s
app2 1/1 Running 0 6m35s
root@cks-master:~# k get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
app1 ClusterIP 10.105.1.235 <none> 80/TCP 5m34s
app2 ClusterIP 10.98.16.26 <none> 80/TCP 5m29s
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 2d19h
root@cks-master:~#
Agora vamos criar a regra do ingress para apontar para esses dois services.
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: secure-ingress
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
spec:
ingressClassName: nginx
rules:
- http:
paths:
- path: /app1
pathType: Prefix
backend:
service:
name: app1
port:
number: 80
- path: /app2
pathType: Prefix
backend:
service:
name: app2
port:
number: 80
Observe que para nós o host não importa nesse momento.
root@cks-master:~# vim ingress.yaml
root@cks-master:~# k apply -f ingress.yaml
ingress.networking.k8s.io/secure-ingress created

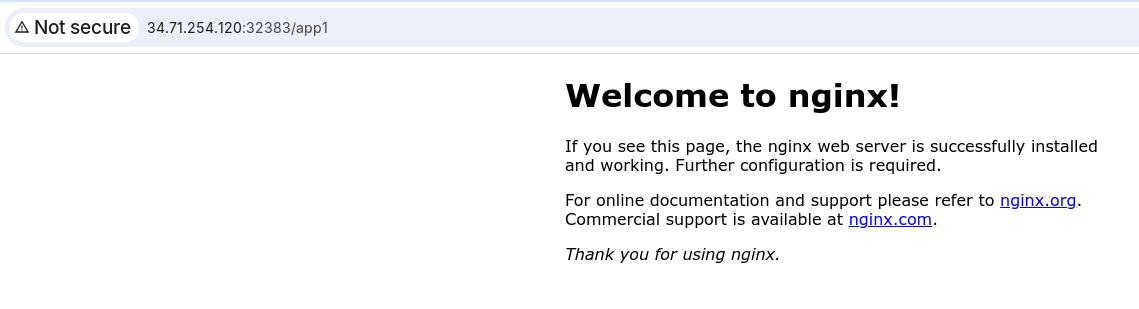

root@cks-master:~# k get ingress
NAME CLASS HOSTS ADDRESS PORTS AGE
secure-ingress nginx * 80 21s
root@cks-master:~#
Se mudarmos para a porta HTTPS e tentarmos fazer um curl por exemplo tempos um problema.
❯ curl https://34.71.254.120:32617/app1
curl: (60) SSL certificate problem: self-signed certificate
More details here: https://curl.se/docs/sslcerts.html
curl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.
# O -k aceita certificados auto assinados.
❯ curl https://34.71.254.120:32617/app1 -k
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
# Vamos melhorar o verbose para ver o que aconteceu
❯ curl https://34.71.254.120:32617/app1 -kv
* Trying 34.71.254.120:32617...
* Connected to 34.71.254.120 (34.71.254.120) port 32617 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* TLSv1.0 (OUT), TLS header, Certificate Status (22):
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS header, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS header, Finished (20):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.2 (OUT), TLS header, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384
* ALPN, server accepted to use h2
* Server certificate:
* subject: O=Acme Co; CN=Kubernetes Ingress Controller Fake Certificate
* start date: Aug 18 14:55:52 2024 GMT
* expire date: Aug 18 14:55:52 2025 GMT
## Se não definimos um certificado o nginx usa um criado por ele por default.
* issuer: O=Acme Co; CN=Kubernetes Ingress Controller Fake Certificate
* SSL certificate verify result: self-signed certificate (18), continuing anyway.
* Using HTTP2, server supports multiplexing
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* Using Stream ID: 1 (easy handle 0x6480f130beb0)
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
> GET /app1 HTTP/2
> Host: 34.71.254.120:32617
> user-agent: curl/7.81.0
> accept: */*
>
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* old SSL session ID is stale, removing
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* Connection state changed (MAX_CONCURRENT_STREAMS == 128)!
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
< HTTP/2 200
< date: Sun, 18 Aug 2024 16:11:36 GMT
< content-type: text/html
< content-length: 615
< last-modified: Mon, 12 Aug 2024 14:21:01 GMT
< etag: "66ba1a4d-267"
< accept-ranges: bytes
< strict-transport-security: max-age=31536000; includeSubDomains
<
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* Connection #0 to host 34.71.254.120 left intact
Documentação para criar um certificado tls.
Vamos criar um certificado para um domínio e depois vamos usar no nosso nginx e depois extender nossa regra para usar o TLS correto.
A opção -nodes no comando openssl é utilizada para especificar que a chave privada gerada pelo comando não deve ser criptografada. Quando você cria uma chave privada usando openssl, por padrão, você pode optar por protegê-la com uma senha. Essa proteção criptografa a chave, exigindo que uma senha seja fornecida sempre que a chave for usada.
Não precisamos completar nada, apenar o domain que vamos usar.
root@cks-master:~# openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -days 365 -nodes
Generating a RSA private key
.....................................................................++++
................................................................................................................................................................++++
writing new private key to 'key.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
State or Province Name (full name) [Some-State]:
Locality Name (eg, city) []:
Organization Name (eg, company) [Internet Widgits Pty Ltd]:
Organizational Unit Name (eg, section) []:
Common Name (e.g. server FQDN or YOUR name) []:studycks.com ## Aqui
Email Address []:
root@cks-master:~# ls *.pem
cert.pem key.pem
# vamos criar nossa secret no kubernetes com o tls.
# Vamos deixar claro que tudo aqui foi aplicado no namespace default, logo essa key e as regras de ingress default são recursos de namespace.
root@cks-master:~# k create secret tls studycks --cert=cert.pem --key=key.pem
secret/studycks created
root@cks-master:~# k get ingress,secrets
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/secure-ingress nginx * 80 30m
NAME TYPE DATA AGE
secret/studycks kubernetes.io/tls 2 27s
Agora precisamos editar o nosso ingress e adicionar uma sessão tls que dirá qual é o certificado que vamos usar.
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: secure-ingress
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
spec:
ingressClassName: nginx
tls:
- hosts:
- studycks.com
secretName: studycks
rules:
# Agora somos obrigados a expecificar o host
- host: studycks.com
http:
paths:
- path: /app1
pathType: Prefix
backend:
service:
name: app1
port:
number: 80
- path: /app2
pathType: Prefix
backend:
service:
name: app2
port:
number: 80
root@cks-master:~# vim ingress.yaml
root@cks-master:~# k apply -f ingress.yaml
ingress.networking.k8s.io/secure-ingress configured
Voltando ao nosso terminal local vamos refazer o teste
❯ curl https://34.71.254.120:32617/app1 -kv
* Trying 34.71.254.120:32617...
* Connected to 34.71.254.120 (34.71.254.120) port 32617 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* TLSv1.0 (OUT), TLS header, Certificate Status (22):
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS header, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS header, Finished (20):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.2 (OUT), TLS header, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384
* ALPN, server accepted to use h2
* Server certificate:
# Ainda temos o mesmo problema, pq não usamos o domínio. O ingress esta filtrando pelo domain logo se usarmos o ip diretamente não temos uma requisição iniciada por studycks.com.
* subject: O=Acme Co; CN=Kubernetes Ingress Controller Fake Certificate
* start date: Aug 18 14:55:52 2024 GMT
* expire date: Aug 18 14:55:52 2025 GMT
* issuer: O=Acme Co; CN=Kubernetes Ingress Controller Fake Certificate
* SSL certificate verify result: self-signed certificate (18), continuing anyway.
* Using HTTP2, server supports multiplexing
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* Using Stream ID: 1 (easy handle 0x5d5f442d5eb0)
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
> GET /app1 HTTP/2
> Host: 34.71.254.120:32617
> user-agent: curl/7.81.0
> accept: */*
>
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* old SSL session ID is stale, removing
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* Connection state changed (MAX_CONCURRENT_STREAMS == 128)!
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
< HTTP/2 404
< date: Sun, 18 Aug 2024 16:35:29 GMT
< content-type: text/html
< content-length: 146
< strict-transport-security: max-age=31536000; includeSubDomains
<
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* Connection #0 to host 34.71.254.120 left intact
Como esse domínio não pertence a gente e não é um domínio que possa ser resolvido, vamos resolver dentro da nossa máquina localmente dizendo que studycks.com:32617 irá para o ip da máquina.
❯ curl https://studycks.com:32617/app1 -kv --resolve studycks.com:32617:34.71.254.120
* Added studycks.com:32617:34.71.254.120 to DNS cache
* Hostname studycks.com was found in DNS cache
* Trying 34.71.254.120:32617...
* Connected to studycks.com (34.71.254.120) port 32617 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* TLSv1.0 (OUT), TLS header, Certificate Status (22):
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS header, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS header, Finished (20):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.2 (OUT), TLS header, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384
* ALPN, server accepted to use h2
* Server certificate:
* subject: C=AU; ST=Some-State; O=Internet Widgits Pty Ltd; CN=studycks.com # Agora estamos usando o certificado certo.
* start date: Aug 18 16:26:42 2024 GMT
* expire date: Aug 18 16:26:42 2025 GMT
* issuer: C=AU; ST=Some-State; O=Internet Widgits Pty Ltd; CN=studycks.com
* SSL certificate verify result: self-signed certificate (18), continuing anyway.
* Using HTTP2, server supports multiplexing
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* Using Stream ID: 1 (easy handle 0x5c6e3ab84eb0)
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
> GET /app1 HTTP/2
> Host: studycks.com:32617
> user-agent: curl/7.81.0
> accept: */*
>
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* old SSL session ID is stale, removing
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* Connection state changed (MAX_CONCURRENT_STREAMS == 128)!
* TLSv1.2 (OUT), TLS header, Supplemental data (23):
* TLSv1.2 (IN), TLS header, Supplemental data (23):
< HTTP/2 200
< date: Sun, 18 Aug 2024 16:42:16 GMT
< content-type: text/html
< content-length: 615
< last-modified: Mon, 12 Aug 2024 14:21:01 GMT
< etag: "66ba1a4d-267"
< accept-ranges: bytes
< strict-transport-security: max-age=31536000; includeSubDomains
<
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
* TLSv1.2 (IN), TLS header, Supplemental data (23):
* Connection #0 to host studycks.com left intact
