Managed Resources

A managed resource represents any external resource provisioned and controlled by a Crossplane provider. External resources, such as those in cloud providers, are mapped to managed resources within Kubernetes, allowing their declarative management through native Kubernetes objects.

Crossplane offers two approaches for working with managed resources:

Individual resources: Create and manage individual managed resources directly.
Compositions: Define sets of managed resources that are provisioned and managed as a single logical unit.

The Crossplane team itself recommends starting by working with individual resources to better understand how the system works and, as you gain more experience, advance to using compositions.

Every managed resource has an associated deletion policy that defines the behavior when the managed resource is deleted:

deletionPolicy: Delete (Default - Delete the external resource when deleting the managed resource)
deletionPolicy: Orphan (Leave the external resource when deleting the managed resource)

forProvider

Looking at the yaml below that defines an ec2 in AWS.

apiVersion: ec2.aws.upbound.io/v1beta1
kind: Instance
metadata:
  name: crossplane-test
spec:
# The spec.forProvider of a managed resource is mapped to the external resource parameters.
# forProvider is considered the source of truth. After the resource is created in the provider, if a user makes a change within a provider's web console, Crossplane will revert that change back to what is configured in forProvider.
  forProvider:
    region: us-east-1
    ami: ami-02a89066c48741345
    subnetId: subnet-0a056609984bfbb94
    instanceType: t2.micro
  providerConfigRef:
    name: default

Many times a resource needs to reference another resource like the subnetId we defined above. This resource can be done manually or by inference.

Since we installed the provider aws upbound which uses upbound's apiversion, let's use their github https://github.com/upbound/provider-aws/tree/main for some examples

Let's create a VPC and then a subnet using this VPC.

apiVersion: ec2.aws.upbound.io/v1beta1
kind: VPC
metadata:
  name: crossplane-vpc
spec:
  forProvider:
    region: us-east-1
    cidrBlock: 10.0.0.0/16
    enableDnsSupport: true
  providerConfigRef:
    name: default

Let's apply the manifest above and check

kubectl apply -f vpc.yaml
vpc.ec2.aws.upbound.io/crossplane-vpc created

kubectl get vpcs.ec2.aws.upbound.io
NAME             READY   SYNCED   EXTERNAL-NAME           AGE
crossplane-vpc   True    True     vpc-0bbe67dde157bb143   15m

# Do a describe and see what we have
kubectl describe vpcs.ec2.aws.upbound.io crossplane-vpc

What mattered there was having a VPC to create a subnet referencing by its name which will be automatically replaced by its external name, observe.

apiVersion: ec2.aws.upbound.io/v1beta1
kind: Subnet
metadata:
  name: crossplane-subnet1
spec:
  forProvider:
    region: us-east-1
    availabilityZone: us-east-1a
    # Here we use the reference by name, which will bring us the ID
    vpcIdRef:
      name: crossplane-vpc
    cidrBlock: 10.0.10.0/24
  providerConfigRef:
    name: default
---
apiVersion: ec2.aws.upbound.io/v1beta1
kind: Subnet
metadata:
  name: crossplane-subnet2
spec:
  forProvider:
    region: us-east-1
    availabilityZone: us-east-1b
    # Here we use the ID directly without making a reference
    vpcId: vpc-0647cd3d73b2245b5
    cidrBlock: 10.0.20.0/24
  providerConfigRef:
    name: default
---
apiVersion: ec2.aws.upbound.io/v1beta1
kind: Subnet
metadata:
  name: crossplane-subnet3
spec:
  forProvider:
    region: us-east-1
    availabilityZone: us-east-1b
    # Here we select using labels
    vpcIdSelector:
      matchLabels:
        name: crossplane-vpc
    cidrBlock: 10.0.30.0/24
  providerConfigRef:
    name: default
---

And let's apply...

❯ kubectl get subnets.ec2.aws.upbound.io
NAME                 READY   SYNCED   EXTERNAL-NAME              AGE
crossplane-subnet1   True    True     subnet-021e79c108d979bee   6m10s
crossplane-subnet2   True    True     subnet-06194392f1196f39e   86s

We understand the references, but did you notice that we always need to define the providerConfigRef block?

If we make a single composition creating the VPCs and subnets in a single manifest, we can have only one providerConfigRef.

What would happen if we tried to delete a VPC that has a subnet inside? Remember that in the AWS console itself, it wouldn't be possible to delete without first removing the subnets.

And if we changed the region of a subnet? We couldn't apply it, as this field is immutable.

Crossplane treats the managed resource as the source of truth by default; it expects to have all values, spec.forProvider including the optional ones. If not provided, Crossplane will fill empty fields with values assigned by the provider. For example, consider fields like region and availabilityZone. You can specify only the region and let the cloud provider choose the availability zone. In that case, if the provider assigns an availability zone, Crossplane will use that value to fill the spec.forProvider.availabilityZone field.

Annotations

Some annotations are created by crossplane itself on resources.

Annotation	Definition
crossplane.io/external-name	The name of the managed resource within the Provider. By default the given name is the same value as `name` in metadata, but it's possible to have a specific name. It's good practice to keep the same.
crossplane.io/external-create-pending	Automatically created date/time when Crossplane started creating the managed resource.
crossplane.io/external-create-succeeded	Automatically created date/time when the Provider successfully created the managed resource.
crossplane.io/external-create-failed	Automatically created date/time when the Provider failed to create the managed resource.
crossplane.io/paused	Indicates that Crossplane is not reconciling this resource. Read the pause annotation for more details.
crossplane.io/composition-resource-name	For managed resources created by a Composition, this is the resources.name value from the Composition.

These annotations are created automatically if they happen.

Creating an RDS cluster for example in AWS, without instance, we can observe the use of annotation to expose the name we want. This example is in the resource folder to be applied.

apiVersion: rds.aws.upbound.io/v1beta1
kind: Cluster
metadata:
  # This would be the name if we hadn't used the annotation below
  name: clusterdb
  annotations:
    crossplane.io/external-name: cluster-db-custom-name
spec:
  forProvider:
    region: us-east-1
    engine: aurora-postgresql
    masterUsername: cpadmin
    masterPasswordSecretRef:
      name: clusterdb-password
      namespace: crossplane-system
      key: password
    skipFinalSnapshot: true
  writeConnectionSecretToRef:
    name: rds-clusterdb-secret
    namespace: crossplane-system
---
apiVersion: v1
kind: Secret
metadata:
  name: clusterdb-password
  namespace: crossplane-system
type: Opaque
stringData:
  password: TestPass0!

kubectl apply -f rds.yaml

kubectl get cluster.rds
NAME        READY   SYNCED   EXTERNAL-NAME            AGE
clusterdb   True    True     cluster-db-custom-name   4m7s

kubectl describe cluster.rds clusterdb
Name:         clusterdb
Namespace:
Labels:       <none>
## See the annotations. Since it didn't fail there's no failed or paused annotation.
Annotations:  crossplane.io/external-create-pending: 2023-10-24T13:53:58Z
              crossplane.io/external-create-succeeded: 2023-10-24T13:53:58Z
              crossplane.io/external-name: cluster-db-custom-name
              upjet.crossplane.io/provider-meta:
                {"e2bfb730-ecaa-11e6-8f88-34363bc7c4c0":{"create":7200000000000,"delete":7200000000000,"update":7200000000000}}
...

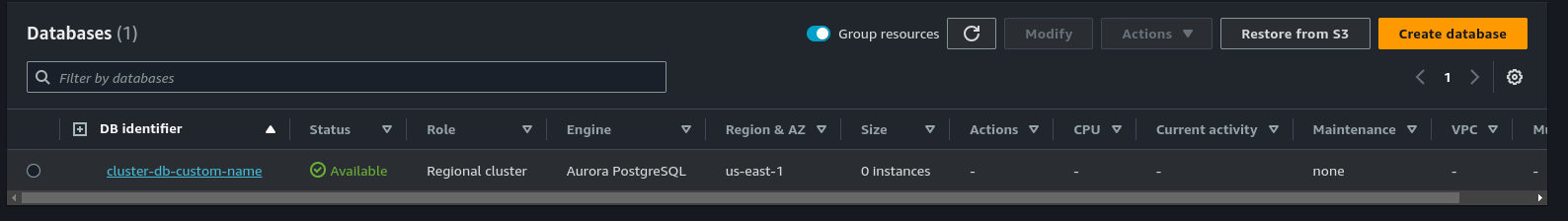

rds

It's critical to first understand how managed resources work, but as I mentioned earlier, using compositions that we'll see later is a much better way to define and manage resources.

providerConfigRef

The providerConfigRef tells the Provider which ProviderConfig to use when creating the managed resource. We pass the configuration name.

Each managed resource can reference different ProviderConfigs. This allows different managed resources to be authenticated with different credentials in the same Provider.

Drift and Reconciliation

What happens if we delete a pod in Kubernetes that is controlled by a replicaset? It will recreate it. It guarantees the desired state right? It takes care that the pod is always up, in the correct quantity.

Crossplane is a controller right? So, if a resource is deleted from the cloud, but it's defined in Crossplane, it will recreate it. It will see that the resource it has to provision is no longer there and will apply it again. In Terraform, if this happens it will only be detected the difference the next time the project is applied.

Crossplane elevated the concept of reconciliation and drift far beyond pods, but for everything!

Actually when we apply several manifests at once Crossplane executes them all simultaneously, it's not like Terraform with depends_on. It will apply and as it becomes true, the references will be automatically corrected.

view managed resources

kubectl get managed
NAME                                                                  READY   SYNCED   EXTERNAL-NAME                               AGE
kafkatopic.confluent.crossplane.io/emx-test-composition-zn79p-w6wxd   True    True     lkc-7nx291/emx_test-composition             3d16h
kafkatopic.confluent.crossplane.io/topic-emx-ninjas-test              True    True     lkc-7nx291/emx_test-crossplane-topic-emx    11d
kafkatopic.confluent.crossplane.io/topic-emx-ninjas-test2             True    True     lkc-7nx291/emx_test-crossplane-topic-emx2   11d

NAME                                                            READY   SYNCED   AGE     PATH WITH NAMESPACE
project.projects.gitlab.crossplane.io/test-project-crossplane   True    True     6d14h   latamairlines/oper/emx/platform-engineering/port/test
