Review Containers
Let's just review important container concepts.

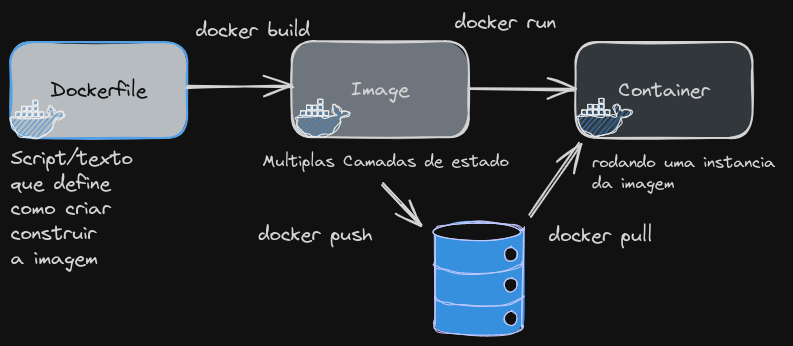

In summary...
- Dockerfile is the file that describes an image.
- An image is a series of layers where only the last one is writable, the rest are read-only.
- A container is an image being executed.
- An image can be stored in a repository with push, and pull downloads this image.
A container differs from a VM because it makes syscall calls directly to the Linux kernel.
A container is:
- A collection of one or multiple applications that are grouped and include all their dependencies so they can execute.
- It's a process that runs on the Linux kernel with some restrictions so they are encapsulated and isolated from the host base system.

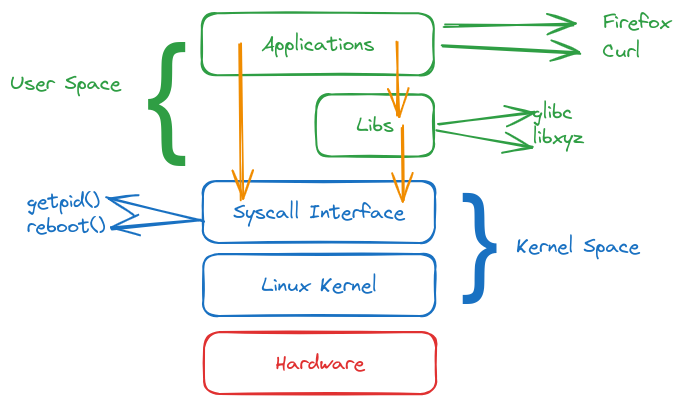

This is how a system call (syscall) from an application works, whether using a container or directly on the host system.
In the case of a virtual machine, there is no interaction with the host system as with containers.
If we have several containers running on a host, we have the following scenario.
If all these containers make system calls to the same kernel, they need isolation, and the way Linux does this is through namespaces. If they weren't isolated, they could exploit kernel security problems in the host.
The Linux kernel divides containers by namespaces and manages them separately, restricting what a process can or cannot see at the process, user, and filesystem level. Cgroups restrict the resource usage of the process (RAM, Disk, CPU).
- PID
- Isolates the processes of each container from other processes.
- A process ID can exist multiple times, once in each namespace.
- Namespace processes cannot see other processes from other namespaces.
- Mount
- In a namespace, we can restrict access to mount points or to the root filesystem.
- Network
- Access only certain network devices.
- Firewall rules, sockets, and independent ports.
- Cannot see all traffic or reach all endpoints.
- User
- Different set of user IDs used.
- User 0 inside a namespace can be different from the same user 0 in another namespace.
- User 0 inside the host (root) is not the same root inside the container.
Container Runtime
We have different container runtimes, but let's review the difference.
Docker: Container Runtime + container and image management tool.Containerd: Container Runtime without management tools.crictl: Generic and interactive CLI compatible with all container runtimes that implement CRI standards. Can run with Docker, containerd, and other compatible ones.Podman: Tool to manage containers and images. When we install podman, it installs runc as container runtime, just like Buildah.
Just to illustrate, let's create a simple Dockerfile.
Dockerfile
FROM bash
CMD ["ping", "devsecops.puziol.com.br"]
Let's build an image and run using Docker.
root@cks-master:~# vim Dockerfile
root@cks-master:~# docker build -t ping . # ping is the image name and . is the directory containing the dockerfile
DEPRECATED: The legacy builder is deprecated and will be removed in a future release.
Install the buildx component to build images with BuildKit:
https://docs.docker.com/go/buildx/
Sending build context to Docker daemon 2.693MB
Step 1/2 : FROM bash
latest: Pulling from library/bash
c6a83fedfae6: Pull complete
70acf8f93de9: Pull complete
7621ec80326e: Pull complete
Digest: sha256:05de6634ac35e4ac2edcb1af21889cec8afcc3798b11a9d538a6f0c315608c48
Status: Downloaded newer image for bash:latest
---> bd4206c5bc03
Step 2/2 : CMD ["ping", "devsecops.puziol.com.br"]
---> Running in 9bb4eae80da0
Removing intermediate container 9bb4eae80da0
---> 80a23eb00c36
Successfully built 80a23eb00c36
Successfully tagged ping:latest
# The images we have available below are bash which was the base for ping
root@cks-master:~# docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
ping latest 80a23eb00c36 10 seconds ago 14.4MB
bash latest bd4206c5bc03 2 weeks ago 14.4MB
# Note they have the same size because nothing was included in the image, only a command, and this doesn't generate a layer
root@cks-master:~# docker run ping
PING devsecops.puziol.com.br (172.67.129.115): 56 data bytes
64 bytes from 172.67.129.115: seq=0 ttl=60 time=13.352 ms
64 bytes from 172.67.129.115: seq=1 ttl=60 time=11.807 ms
64 bytes from 172.67.129.115: seq=2 ttl=60 time=11.821 ms
64 bytes from 172.67.129.115: seq=3 ttl=60 time=11.761 ms
64 bytes from 172.67.129.115: seq=4 ttl=60 time=11.839 ms
We can do the same thing with podman but I want to show a curiosity first.
root@cks-master:~# podman image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
This happens because Docker and Podman manage their images in different storage. When we create an image with Docker, it's stored in Docker's specific storage directory, while Podman uses its own directory to store images.
Even though the images are compatible between Docker and Podman, they are not automatically visible in both managers due to this storage separation.
If we wanted to use the same image without having to build a new one with podman, we could export through docker and import through podman.
root@cks-master:~# docker save -o ping.tar ping
root@cks-master:~# ls
Dockerfile common.sh initclustr.sh ping.tar snap
root@cks-master:~# podman load -i ping.tar
Getting image source signatures
Copying blob 8005df329219 done
Copying blob 78561cef0761 done
Copying blob 09db3fa8d4c8 done
Copying config 80a23eb00c done
Writing manifest to image destination
Storing signatures
Loaded image(s): localhost/ping:latest
root@cks-master:~# podman image ls
# Note that the bash image is not here because it was only downloaded to build. If we had done the build using podman it would be here too.
REPOSITORY TAG IMAGE ID CREATED SIZE
localhost/ping latest 80a23eb00c36 9 minutes ago 14.9 MB
root@cks-master:~# podman run ping
PING devsecops.puziol.com.br (104.21.1.153): 56 data bytes
64 bytes from 104.21.1.153: seq=0 ttl=42 time=12.717 ms
64 bytes from 104.21.1.153: seq=1 ttl=42 time=11.135 ms
64 bytes from 104.21.1.153: seq=2 ttl=42 time=11.133 ms
64 bytes from 104.21.1.153: seq=3 ttl=42 time=11.307 ms
64 bytes from 104.21.1.153: seq=4 ttl=42 time=11.104 ms
The podman and docker commands are practically the same. Just swap docker for podman and generally everything works. Let's include the same command with crictl to show something.
root@cks-master:~# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
# Practically the same output
root@cks-master:~# podman ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
root@cks-master:~# crictl ps
CONTAINER IMAGE CREATED STATE NAME ATTEMPT POD ID POD
5ce963ae949f7 f9c3c1813269c 17 minutes ago Running calico-kube-controllers 1 bfe586b33ea68 calico-kube-controllers-75bdb5b75d-d2tl9
696b9c6f4a078 cbb01a7bd410d 17 minutes ago Running coredns 1 7f43504bc7b48 coredns-7db6d8ff4d-kdb4t
4811a65d42dd3 cbb01a7bd410d 17 minutes ago Running coredns 1 35875876bef79 coredns-7db6d8ff4d-cmcff
b675aa0276e5f e6ea68648f0cd 18 minutes ago Running kube-flannel 1 abc1904b21596 canal-8nn2f
734effffec2f5 75392e3500e36 18 minutes ago Running calico-node 1 abc1904b21596 canal-8nn2f
971577d43a681 55bb025d2cfa5 18 minutes ago Running kube-proxy 1 d0f7a3832ae63 kube-proxy-c2qx6
2cfff390a9c72 3edc18e7b7672 18 minutes ago Running kube-scheduler 1 4a28794d2940a kube-scheduler-cks-master
8b6c080830c3c 76932a3b37d7e 18 minutes ago Running kube-controller-manager 1 a01c11a1a974b kube-controller-manager-cks-master
667821ced3ab2 1f6d574d502f3 18 minutes ago Running kube-apiserver 1 d9132c59e74ef kube-apiserver-cks-master
9870d8a0847ee 3861cfcd7c04c 18 minutes ago Running etcd 1 3598be3a95b48 etcd-cks-master
Podman didn't find containers nor did docker, but crictl did.
This happens because podman is using crun as container runtime, docker uses runc, and crictl uses containerd.
root@cks-master:~# docker info | grep Runtime
Runtimes: io.containerd.runc.v2 runc
Default Runtime: runc #<<<<<
root@cks-master:~# podman info | grep ociRuntime -A 5
ociRuntime:
name: crun
package: 'crun: /usr/bin/crun'
path: /usr/bin/crun
version: |-
crun version UNKNOWN
root@cks-master:~# cat /etc/crictl.yaml
runtime-endpoint: unix:///run/containerd/containerd.sock
To confirm namespace isolation, we can run two containers using the same image and verify that they have different process managers with the same PID for processes. This wouldn't be possible if they were running on the same host.
# Creating containers c1 and c2 with different commands
root@cks-master:~# docker run --name c1 -d ubuntu sh -c 'sleep 1d'
1d4f888a9c7c123d4fbf37156f0843066ae10579c95620debe45b5742632125b
root@cks-master:~# docker run --name c2 -d ubuntu sh -c 'sleep 10d'
43f842e87efe4059c8bbab6c3487cb3d95917c14e7c5fd5a3193820489da34d2
# Running ps inside c1
root@cks-master:~# docker exec c1 ps aux
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.1 0.0 2800 1176 ? Ss 14:26 0:00 sh -c sleep 1d
root 7 0.0 0.0 2696 1064 ? S 14:26 0:00 sleep 1d
root 8 50.0 0.1 7888 4036 ? Rs 14:27 0:00 ps aux
# Running ps inside c2
root@cks-master:~# docker exec c2 ps aux
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.1 0.0 2800 1052 ? Ss 14:27 0:00 sh -c sleep 10d
root 7 0.0 0.0 2696 1096 ? S 14:27 0:00 sleep 10d
root 8 60.0 0.0 7888 3992 ? Rs 14:27 0:00 ps aux
# Running inside the host we can see they have different PIDs
root@cks-master:~# ps aux | grep sleep
root 20380 0.0 0.0 2800 1176 ? Ss 14:26 0:00 sh -c sleep 1d
root 20405 0.0 0.0 2696 1064 ? S 14:26 0:00 sleep 1d
root 20555 0.0 0.0 2800 1052 ? Ss 14:27 0:00 sh -c sleep 10d
root 20578 0.0 0.0 2696 1096 ? S 14:27 0:00 sleep 10d
root 28565 0.0 0.0 8168 656 pts/0 S+ 14:43 0:00 grep --color=auto sleep
Now let's do a second test which will be to remove container 2 and start it in the same namespace as container1.
root@cks-master:~# docker rm c2 --force
c2
root@cks-master:~# docker run --name c2 --pid=container:c1 -d ubuntu sh -c 'sleep 10d'
ad5ff9d45ed9f9e44a2aee586fa47dab3184bb7daf1d0949b250968bff4afe8d
# We can see the processes in both containers
root@cks-master:~# docker exec c2 ps aux
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.0 0.0 2800 1176 ? Ss 14:26 0:00 sh -c sleep 1d
root 7 0.0 0.0 2696 1064 ? S 14:26 0:00 sleep 1d
root 14 0.1 0.0 2800 1064 ? Ss 14:45 0:00 sh -c sleep 10d
root 20 0.0 0.0 2696 1088 ? S 14:45 0:00 sleep 10d
root 21 50.0 0.1 7888 4036 ? Rs 14:45 0:00 ps aux
root@cks-master:~# docker exec c1 ps aux
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.0 0.0 2800 1176 ? Ss 14:26 0:00 sh -c sleep 1d
root 7 0.0 0.0 2696 1064 ? S 14:26 0:00 sleep 1d
root 14 0.0 0.0 2800 1064 ? Ss 14:45 0:00 sh -c sleep 10d
root 20 0.0 0.0 2696 1088 ? S 14:45 0:00 sleep 10d
root 28 75.0 0.1 7888 4028 ? Rs 14:46 0:00 ps aux
# Remove the containers after the test
docker rm c1 c2 --force
When we use the --pid=container:<container> option when running a docker run command, we're configuring the new container to share the PID namespace (process management) with another container. This means both containers have access to the same processes, as if they were running in the same PID namespace. However, this doesn't affect other namespaces like network, mount, or IPC (Inter-Process Communication).
